Licese plate lamination production line typical proposal

QUOTATION

Smart License Plate Semi-finished Product Production Line

This proposal includes a 7-machine integrated production line for HSRP smart license plate semi-finished manufacturing, featuring zero-stretch lamination and servo-controlled punching.

View QuoteView Specs

Quotation Overview

Product
Smart license plate semi-finished product production line
Configuration
7 → 1
Total Price
USD 80K–100K
Delivery
1 Month

Detailed Quotation

Product Name Description Unit Qty Price (USD) Delivery Time
Smart license plate semi-finished product production line 7 set machines combined to 1 production line set 1 80K–100K 1 month
Total USD 80K–100K

Advantages & Main Composition

Main Advantages

  • Compact footprint; line can be arranged within 15 meters
  • Stable punching performance with fast speed
  • Automatic reflective film correction and zero-stretch lamination

Main Modules

  • Unwinding machine + leveling machine
  • Intelligent deviation-correction laminator
  • Servo feeder with reflective film color mark sensing
  • Four-column hydraulic press
  • Residual material collection machine + conveyor
  • Computer control center

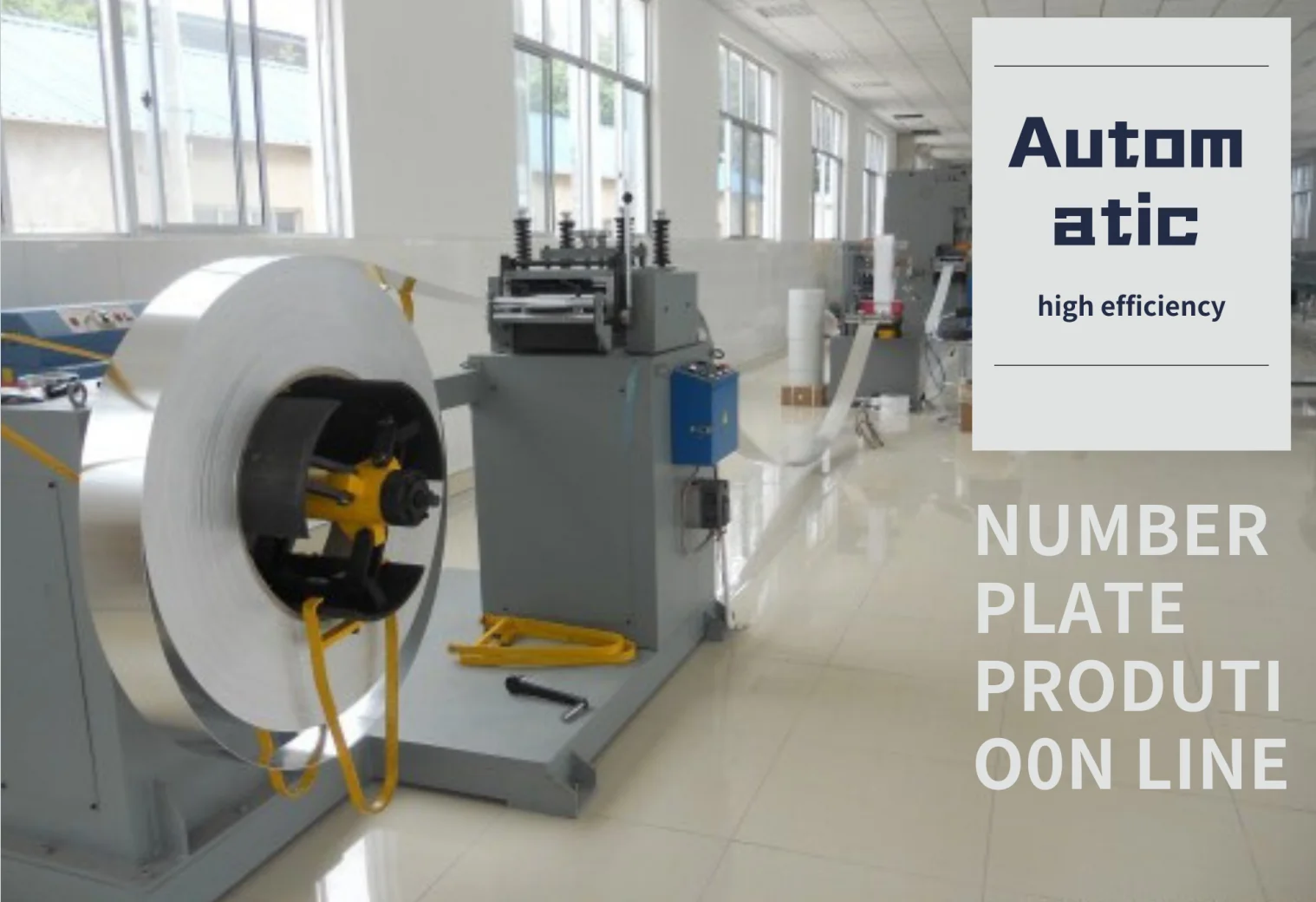

Production Line Overview
Production Line Overview

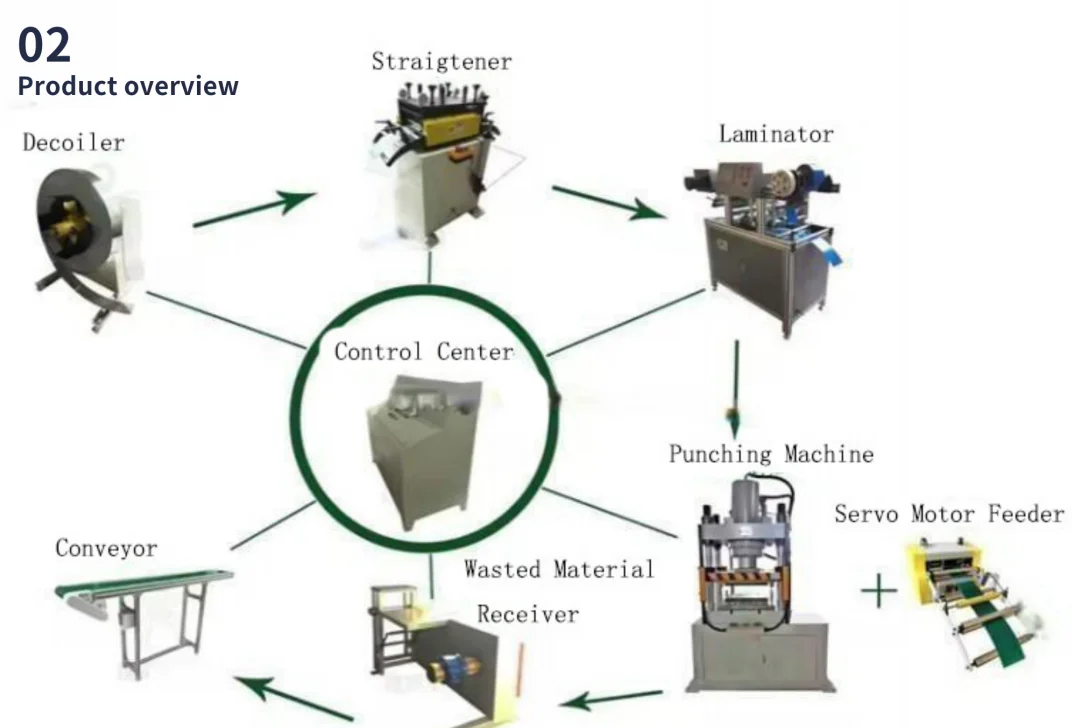

Main Modules Layout
Main Modules Layout

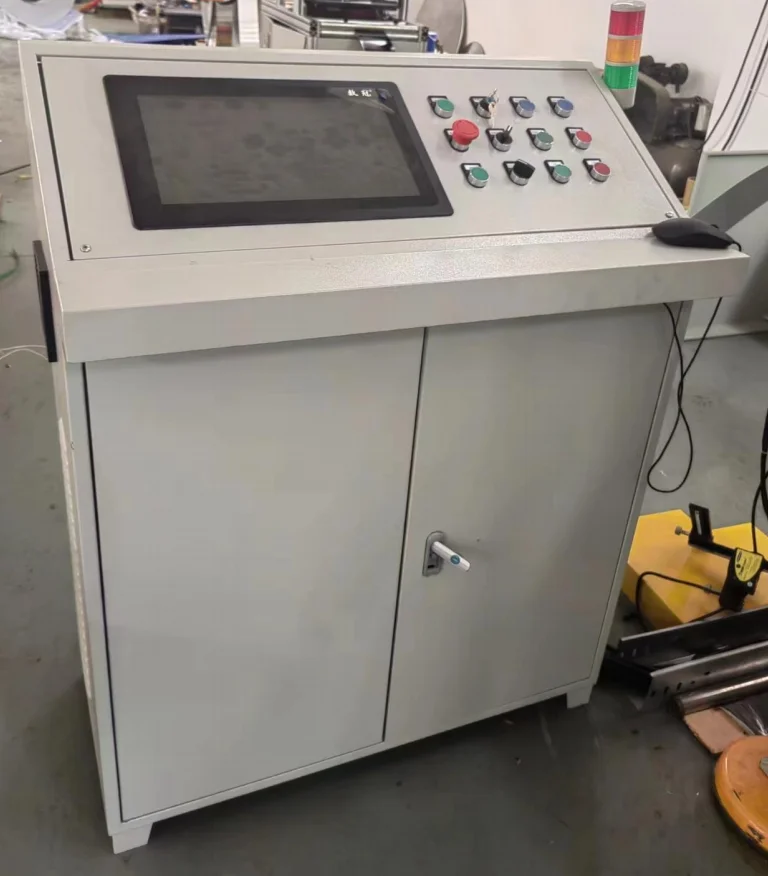

Control Center
Control Center

Technical Parameters

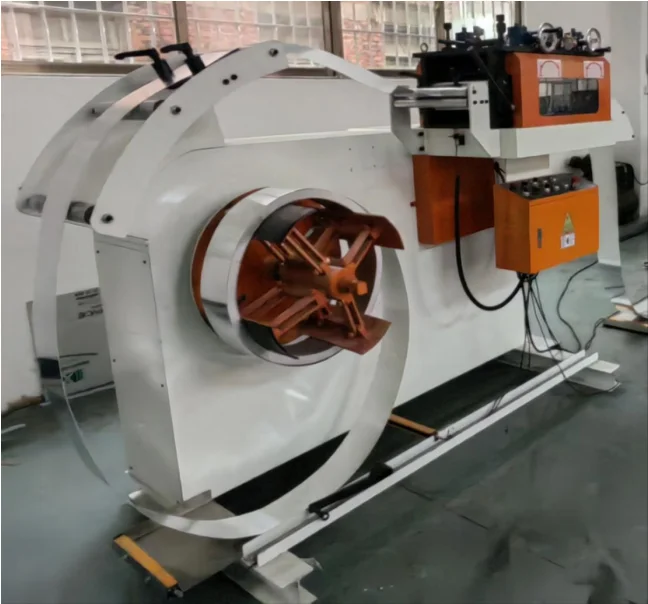

Decoiler and Straightener
Decoiler & Straightener

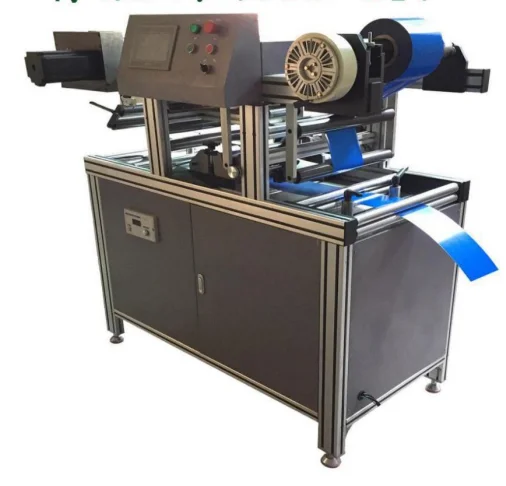

Laminator
Laminator

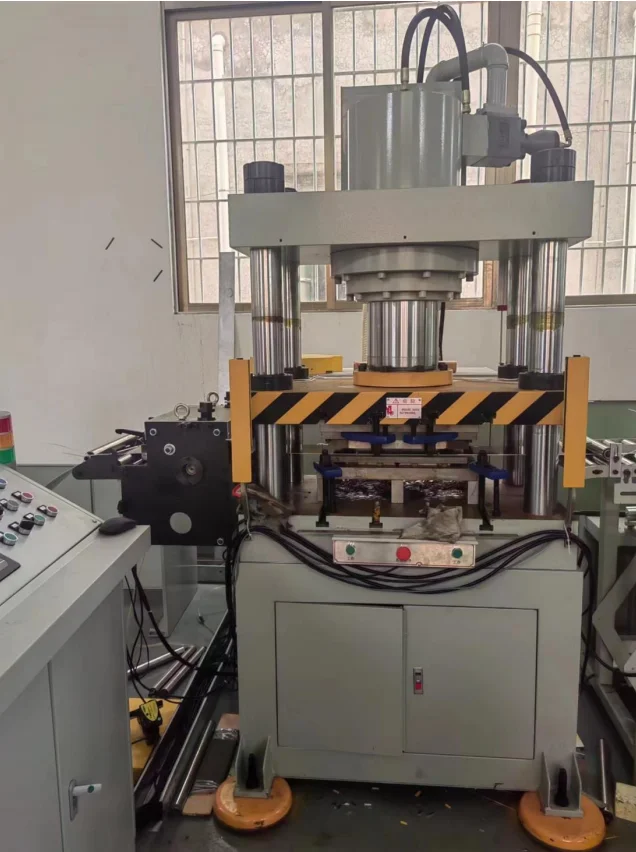

Punching Machine
Punching Machine

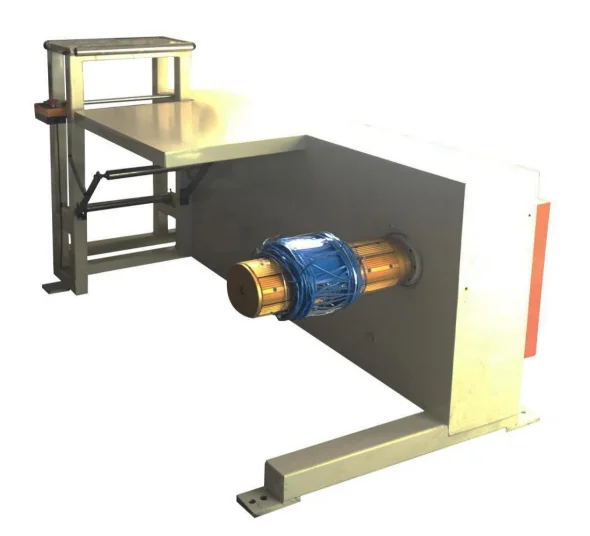

Waste Material Coiler
Waste Material Coiler

1) Decoiler & Straightener

  1. Material width: 0–300 mm
  2. Maximum coil weight: 2000 kg
  3. Expansion method: Hydraulic
  4. Speed: 0–25 m/min
  5. Voltage: 380V
  6. Power: 1500W
  7. Material thickness: 0–3.5 mm
  8. Roll arrangement: Dia.32 (Upper 9 / Lower 10)

2) Laminator

  1. Max lamination width: 400 mm
  2. Speed: 25 m/min (adjustable)
  3. Voltage: 220V
  4. Power: 1.3 kW
  5. Roll fixing method: Electric

3) Punching Machine

  1. Structure type: Four-column
  2. Nominal clamping force: 1000 kN
  3. Main cylinder lifting force: 60 kN
  4. Max opening: 400 mm
  5. Slider stroke: 200 mm
  6. Quick mold closing speed: 230–250 mm/s
  7. Working speed: 15–30 mm/s
  8. Quick mold opening speed: 190–200 mm/s
  9. Working desk size: 900 × 700 mm
  10. Motor power: 15 kW

4) Waste Material Coiler

  1. Maximum width: 0–300 mm
  2. Maximum coil weight: 100 kg
  3. Expansion method: Air pressure
  4. Speed: 0–25 m/min
  5. Voltage: 380V
  6. Power: 750W

Main Component Brands

Hydraulic & Drive

  • Motor: Jin Fuling
  • Electromagnetic valve: JGH (Taiwan)
  • Pressure valve: JGH (Taiwan)
  • Oil pump: Shaoyang (China)
  • Main tank: Besz
  • Seals: NOK or KDAZ

Electrical Control

  • PLC: Mitsubishi (Japan)
  • Contactor: Schneider
  • Other electrical devices: Delixi or Chint

Control Center Note

  • Computer software control architecture
  • More advanced than old line control logic
  • Custom programming available based on customer requirements

Commercial Terms

Payment

  • 50% advance payment
  • 50% before shipment

Warranty

  • 12 months warranty
  • Remote technical support

Delivery

  • Standard lead time: 1 month
  • Subject to final contract confirmation

Offer Validity

  • 30 days validity
  • FX and raw material fluctuation clauses needed to discussed with sales team
✉
